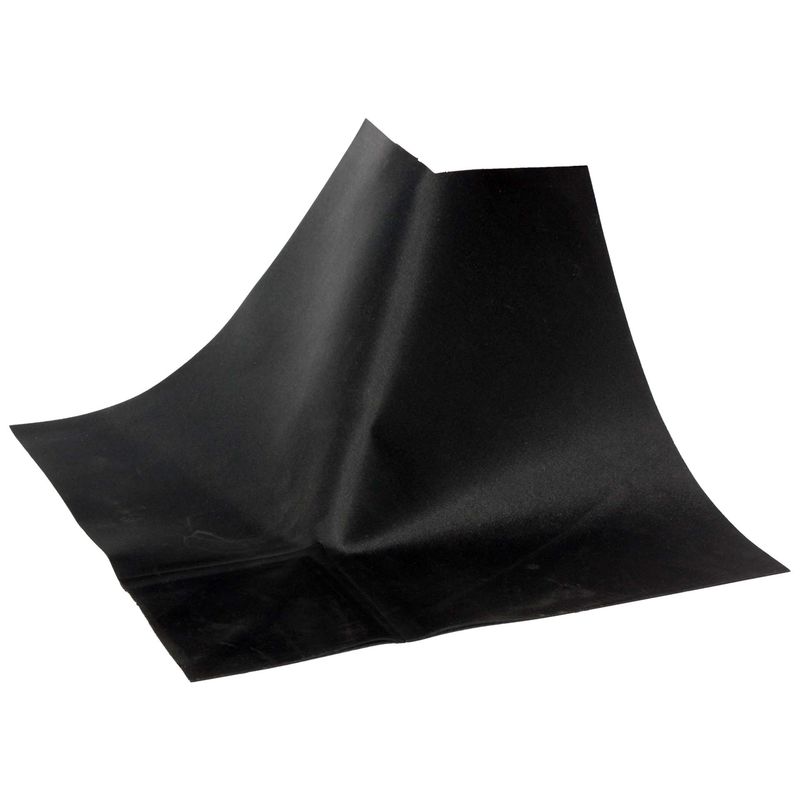

EPDM Outside Corner
For EPDM roof details
The EPDM Outside Corner is a preformed accessory for waterproofing your EPDM roof. This outside corner piece is permanently flexible, highly elastic, UV-resistant and root-resistant.
- Permanently flexible, elastic and 100% UV-resistant
- High elasticity, up to 400% stretch
- Root-resistant, suitable for green roofs
Step-by-step plan
- Use the pre-formed external corner pieces to prevent leaks.
- Then, cut the RUBBER ROOF membrane at an angle of approximately 45° down to the roof surface, finishing by trimming slightly back to form a small circle. This prevents possible tearing when handling the RUBBER ROOF membrane too aggressively during installation.
- Next, glue the pre-formed external corner with ROOF ADHESIVE EPDM. Apply uninterrupted adhesive strips to the back of the corner piece, both on the vertical and horizontal parts, according to the depicted diagram. Ensure that the outer adhesive strip is always applied about 2 cm from the edge.
- Apply the corner piece and press it down with a roller. With correct bonding, a small amount of adhesive should always ooze out from under the corner piece, which can be carefully removed.
Technical features
| Dimensions | 15 × 15 × 0,1 cm |
|---|---|
| Variation | Outside Corner 45° – 150 mmOutside Corner 90° – 500 mmOutside Corner 90° – 150 mm |
| EAN | 541346694177354134669417975413466941780 |
| Volume | 111 |
| Material | EPDMEPDMEPDM |
| Expected lifespan (in years) | 000 |
| Thickness (mm) | 111 |
| Width (mm) | 150500300 |
| Surface area (m²) | 000 |
| Length (mm) | 150500300 |
| Content indication | Stuk(s)Stuk(s)Stuk(s) |
