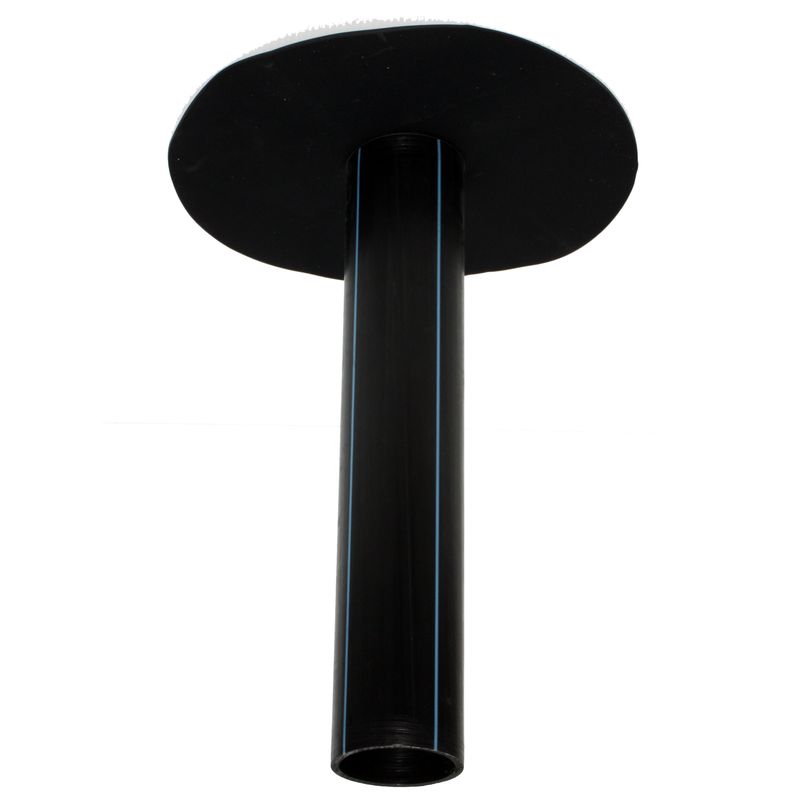

Rainwater Drain Vertical
Evacuation of roof rainwater
The vertical, internal EPDM rainwater drain is designed to seamlessly connect your rainwater drain to an EPDM roof. The drain is permanently flexible, highly elastic, UV-resistant and root-resistant.
- Permanently flexible, elastic and 100% UV-resistant
- High elasticity, up to 400% stretch
- Root-resistant, suitable for green roofs
Step-by-step plan
Accessories
Technical features
Related products
Step-by-step plan
- Always use the preformed rainwater drains because they guarantee a perfect watertight finish
- Determine where to place the drain, draw its outline with chalk, and cut out the segment where the drain will be. If necessary, cut the drain pipe to the correct length.
- Then apply two continuous beads of ROOF GLUE EPDM: one around the cut-out hole and one inside the marked outline. Ensure that the beads of glue are always applied about 2 cm from the side to obtain good adhesion.
- Cover with the rainwater drain and press firmly. Always ensure that a small amount of glue protrudes from under the drain. Carefully remove the excess glue.
Accessories
Technical features
| Variation | Rain Drain round internal/vertical 90 mmRain Drain round internal/vertical 63 mmRain Drain round internal/vertical 75 mm |
|---|---|
| EAN | 541346694172854134669417045413466941711 |
| Material | EPDMEPDMEPDM |
| Product use | Drain rainwaterDrain rainwaterDrain rainwater |
| Volume | 111 |
| Volume Indication | Stuk(s)Stuk(s)Stuk(s) |
| Color | NoirNoirNoir |
| Thickness (mm) | 300300300 |
| Length (mm) | 906375 |
| Width (mm) | 906375 |
