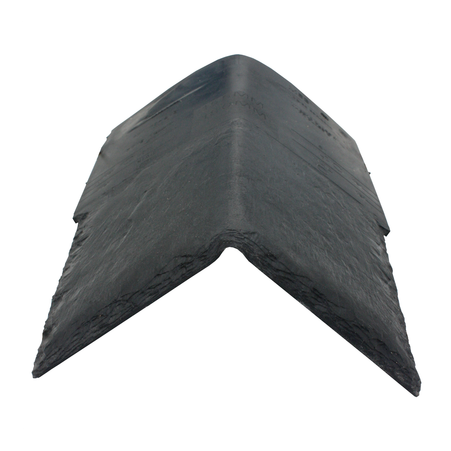

Rustic Slate Ridge Cap

For finishing Rustic Slate ridges

Rustic Slate ridge finish consists of ridge cap ends that match the Rustic Slate roofing system perfectly in terms of look and feel. The ridge finish is 80% lighter than natural slate and 100% recyclable. Easy to install on pitched roofs and lightweight roof structures.

  • Strongly resembles natural slate
  • Easy to install
  • 80% lighter than natural slate
  • Material is 100% recyclable
  • Resistant to all weather conditions

Step-by-step plan

  1. Determine the midpoint of the roof length and place a vertical chalk line from bottom to top as the starting point for each new course of slates.
  2. Prepare the starter slate by drawing a horizontal line on the slate at the 6” marking points (= approx. 27 cm from the bottom of the slate). Cut the slate with a jigsaw.
  3. Install the starter slates by screwing the first two starter slates to the left and right of the chalk line. Use the provided nail mark. At the bottom, ensure an overhang of 3 to 4 cm. Install the subsequent starter slates next to each other so that the edge of one slate touches the side of the other.
  4. Determine the visible area according to the pitch of your roof. Find the corresponding marking line and consistently adhere to it when laying the slates.
  5. To install the next course of slates, start with a slate to the left and right of the vertical chalk line. The chosen marking line always corresponds to the top of the tile underneath. Continue working outwards in this way. Mark the size of the outer slate, cut it and screw it in place. For the next course, place the centre of the first slate on the chalk line once again.

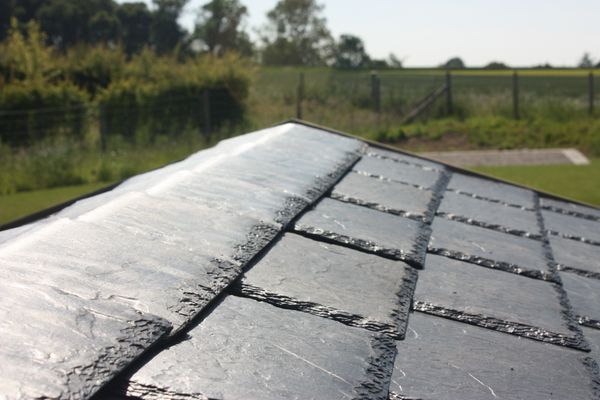

  6. To cover the ridge, use Rustic Slate Ridge Caps. Prepare the ridge caps by cutting the non-visible part at an angle with a box cutter or jigsaw. Always start out facing the prevailing wind. Bend the ridge cap and screw in the circular marks closest to each edge of the slate. Continue like this until you reach the other end of the roof. Cut the last slate to the required width.
  7. Bend the ridge cap and screw in the circular marks closest to each edge of the slate. Continue like this until you reach the other end of the roof. Cut the last slate to the required width.

Calculate how much product you need

Step 1 of 2

  • cm
* By using this calculation module, one agrees to the terms of use: All results are indicative and approximate only. Aquaplan can in no way be held responsible for deviating results resulting from the use of this calculation module.

Technical features

Dimensions 42,8 × 30 × 0,6 cm
Variation

Rustic Slate 1 rm (6 ridge caps)

EAN

5413466941612

Volume

6

Color

Noir

Material

Synthetic

Product use

Waterproofing for pitched roofs

Content indication

Stuk(s)

Expected lifespan (in years)

40

Maximum inclination

90

Minimum inclination

15

Thickness (mm)

6

Length (mm)

428

Width (mm)

300

Surface area (m²)

0.81

Required tools

Hammer
Drill
